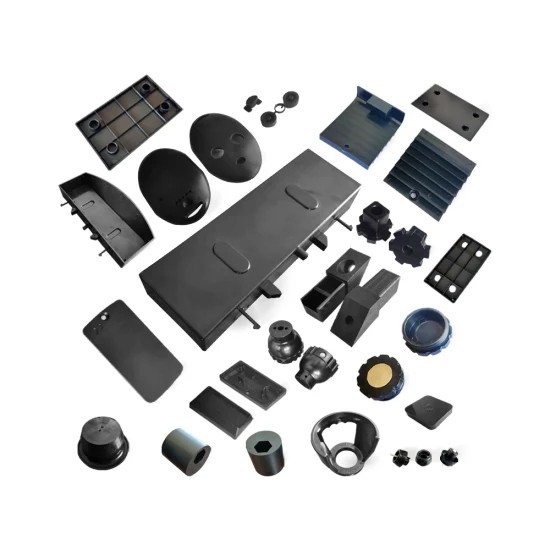

| These 3D Scanning Products have undergone rigorous testing and validation, providing accurate and reliable data for applications such as 3D scanning, reverse engineering, metrology, and inspections. |
| Melt Temperature | 220°C - 250°C. |
| Glass Transition temperature (Tg) | 105°C. |
| Density | 1.03 - 1.20 g/cm³. |
| Flowability | Good: Suitable for complex molds, thin-walled and highly detailed injection molded products, the flowability allows ABS to fill the mold cavity in a short time. Lower injection temperatures and higher injection pressures are often used to minimize flow marks and defects. |
| Injection Pressures | 700 - 1500 bar depend on the part geometry, mold design, wall thickness and injection speed. Complex parts may require higher injection pressures. |
| Injection Speed | Medium to fast, depending on the complexity of the product and the size of the injection molding machine. For more complex, thin-walled products, an appropriately high injection speed can increase productivity. |
| Mold Temperature | 50°C - 80°C. |
| Cooling Time | 15 - 30 seconds, depending on the wall thickness of the part, the mold temperature and the thermal conductivity of the material. Thicker parts require longer cooling times to ensure dimensional stability of the molded part. |
| Shrinkage | 0.4% - 0.8%: Shrinkage of ABS is low, but will vary depending on wall thickness, mold design, cooling rate, and other factors. Shrinkage is usually higher for thin-walled parts and requires special attention during mold design. |
| Surface Gloss | High Gloss: ABS has excellent surface quality and gloss, and can present a very smooth surface, so it is widely used in products with high appearance requirements (e.g., cell phone cases, automotive interior parts). |
| Mechanical Properties | Impact resistance: ABS has high impact resistance, especially at low temperatures, and is suitable for use in impact-resistant products (e.g. toys, tools, automotive parts). |
| Rigidity and Hardness | Medium hardness, good toughness, can withstand certain mechanical loads. Suitable for everyday consumer products and medium load applications. |
| Electrical Insulation | Good: ABS has high electrical insulation properties and is suitable for electronic product housings, electrical accessories (e.g. battery boxes, electrical control panels). |
| Heat Resistance | Medium: ABS has some heat resistance (Tg of 105°C) and is suitable for use in medium temperature environments, not for high temperature working environments. Common applications include appliance housings, automotive interiors, etc. |
| Chemical Resistance | Good: ABS is resistant to mild chemicals (such as grease, solvents, acids, alkalis, etc.), but is not resistant to strong corrosive chemicals such as strong acids and alkalis. It is suitable for use in general daily environments and places with low chemical exposure. |
| UV Resistance | Good: ABS has a certain degree of UV resistance, can be used in outdoor environments for a longer period of time without easy aging. Commonly used in outdoor home, automobile exterior parts and other products exposed to the sun. |
| Post-processing | Diversification: ABS surface is suitable for spraying, silk-screen printing, electroplating, laser marking and other post-processing processes to enhance the appearance and functionality. After treatment, ABS finished products are more in line with high-end market demand. |
| Recyclability Excellent | ABS plastic is easy to recycle and can be reused to a certain extent. Recycled ABS materials can be used in the production of low-end products, but the recycling process may affect its physical properties. |
| Common Application Areas | Automotive: interior and exterior trim parts, instrument panels, lamp reflectors, etc. |
| Electronics: TV housings, cell phone cases, battery cases, etc. | |
| Home appliances: washing machine shells, refrigerator shells, etc. | |
| Consumer goods: toys, sports equipment, office supplies, etc. |
