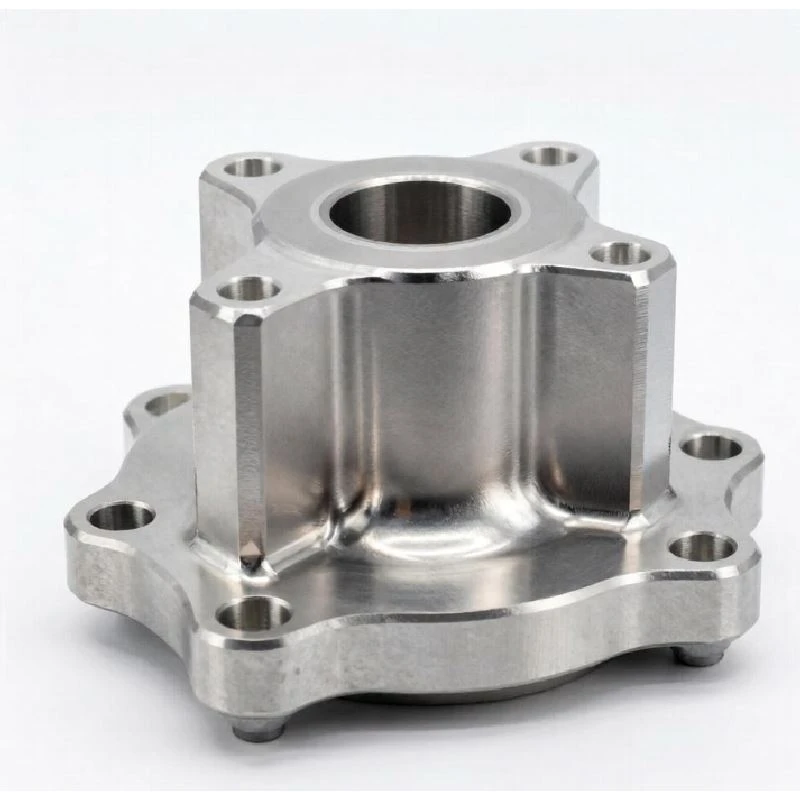

Complex Aluminum CNC Machined Motor Mounts
Complex Aluminum CNC Machined Motor Mounts are custom-engineered components designed to secure, position, and align motors within automation equipment, robotics, motion systems, and specialized machinery.
Technical Specifications
|
Parameter |
Details |
|
Product Type |
Custom CNC Machined Motor Mount / Bracket |
|
Manufacturing Process |
3-Axis, 4-Axis, and 5-Axis CNC Milling, Precision Tapping |
|
Materials |
Aluminum 6061-T6, 7075-T6, 2024, 5052, or custom specified alloys |
|
Design Inputs |
2D Drawings (PDF, DWG) and 3D CAD Files (STEP, IGS) |
|
Integrated Features |
Mounting hole patterns, alignment slots, counterbores, recessed pockets, keyways, datum surfaces |
|
Surface Finishes |
As-Machined, Clear/Color Anodizing, Hardcoat Anodizing (Type III), Bead Blasting, Powder Coating |
|
Tolerances |
Standard: ±0.05 mm (±0.002 in); Precision features: up to ±0.01 mm (±0.0004 in) |
|
Production Volume |
Rapid Prototyping, Small Batch, and Repeat Production Runs |
|
Quality Control |
100% Dimensional Inspection, CMM Verification, First Article Inspection (FAI), Material Test Reports (MTR) |
|
Applications |
Automation Equipment, Robotics, Motion Systems, Drive Assemblies, Conveyors |
Integrated Features and Design Advantages
Multi-Pattern Mounting: Designed to fit NEMA, IEC, or proprietary servo/stepper motor footprints.
Precision Hole Patterns: Features custom metric or imperial threads, counterbores, and clearance holes.
Weight-Reduction Pockets: Optimized pocketing removes unneeded material without reducing structural strength.
Alignment Features: Integrated pilot rings, dowel pin holes, and machined reference datums ensure repeatable positioning.
Clearance Reliefs: Custom pockets protect motor wiring, connectors, and adjacent machine components.
Alignment and Critical Quality Controls
Mounting Surface Flatness: Verified to guarantee a flat interface and prevent angular deflection when hardware is torqued.
True Position Tolerances: Inspected using CMM equipment to ensure precise shaft alignment with gearbox or drive systems.
Plating and Thread Controls: Masking is applied to critical mating surfaces and threaded holes prior to anodizing to preserve final dimensions.
Material Selection
Aluminum 6061-T6
Recommended for general automation, offering excellent machinability, structural strength, corrosion resistance, and cost efficiency.
Aluminum 7075-T6
Selected for high-performance applications requiring maximum strength-to-weight ratio and fatigue resistance.
Material Traceability
All raw material is sourced with full traceability, and Material Test Reports (MTR) are provided upon request.
Quality Assurance and Compliance
ISO 9001 Certification
Strict adherence to quality management protocols.
Advanced Metrology
CMM verification for key geometric and dimensional requirements.
Full Documentation
First Article Inspection (FAI) reports, MTRs, and RoHS/REACH compliance documentation available.
FAQ
Q: What aluminum is commonly used for CNC machined motor mounts?
A: 6061 aluminum is commonly used for general motor mounting applications because it provides a practical balance of machinability, strength, corrosion resistance, availability, and cost.
Q: Can a complex aluminum motor mount be manufactured from my CAD file?
A: Yes. A 3D CAD file such as STEP or STP can be used to evaluate the geometry and prepare the machining process.
Q: Can the motor mounting hole pattern be customized?
A: Yes. Hole diameter, spacing, position, thread type, thread depth, counterbores, countersinks, and mounting patterns can be customized according to the engineering drawing.
Q: Can CNC machining produce pockets, slots, and stepped mounting surfaces?
A: Yes. CNC milling can produce pockets, slots, stepped surfaces, recessed areas, and other complex features when the geometry is accessible to the selected cutting tools.
Q: Should I choose 6061 or 7075 aluminum?
A: The correct choice depends on the application. 6061 is often suitable when balanced mechanical properties, machinability, availability, and cost are important. 7075 may be justified when higher strength is required.
Q: Can the aluminum motor mount be anodized?
A: Yes. Anodizing and hard anodizing can be specified for aluminum motor mounts.
Q: Can the motor mount be produced from prototype to repeat production?
A: Yes. CNC machining can support prototype development and subsequent repeat production when the part geometry and production quantity are appropriate.
